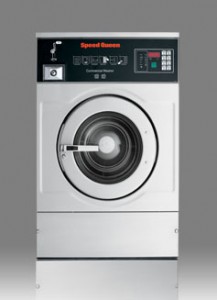

Speed Queen on premises softmount washer extractor for 18lbs

SX18

Capacity - kg (lb)

8 (18)

Width - mm (in)

660 (26")

Depth - mm (in)

780 (30 3/4")

Height - mm (in)

1031 (40 5/8")

Cylinder Diameter - mm (in)

530 (20 15/16")

Cylinder Depth - mm (in)

345 (13 5/8")

Cylinder Volume - liter (cu.ft)

76 (2.7)

Door Opening Size - mm (in)

300 (11 7/8")

Door Bottom to Floor - mm (in)

279 (11")

Wash Speed - rpm

10-50

Distribution Speed - rpm

82

Extract Speed - rpm

250-1000

Extract G-Force - rpm

19-296

Water Inlet Conn. - mm (in)

3 x 19 (3/4")

Steam Inlet Conn. - mm (in)

10 (3/8")

Drain Connection Size - mm (in)

51 (2")

Motor Size - kw (HP)

.75 (1)

Voltage/Hz/Phase Non-heat

200-240/50-60 1/3

Circuit Breaker-FLA

15-6

Voltage/Hz/Phase* Elect. heat

200-240/50-60/3

Circuit Breaker-FLA

30-28

Voltage/Hz/Phase* Non-heat

380-415/50-60/3

Circuit Breaker-FLA

16-6

Voltage/Hz/Phase Elect. heat

380-415/50-60/3

Circuit Breaker-FLA

20-17

Voltage/Hz/Phase*

440-480/50-60/3

Circuit Breaker-FLA

15-6***

Height

1140 (44 15/16")

Shipping Dimensions Width

732 (28 7/8")

Approx. - mm (in) Depth

832 (32 7/8")

Net Weight - kg (lb)

236 (520)

Shipping Weight - kg (lb)

283 (624)

Agency Approval

CE, cETLus



Note:

This is a standard model, if you want additional features for this model; you can call us or send us an email for a quote.
