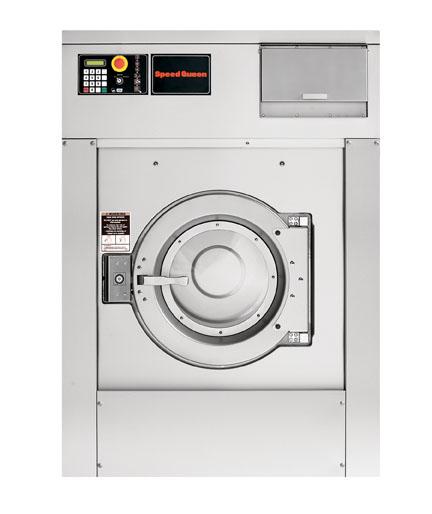

Speed Queen on premises softmount washer extractor for 165lbs

Specifications:



SX165

Capacity - kg (lb)

75 (165)

Width - mm (in)

1300 (51 13/16")

Depth - mm (in)

1620 (63 7/8")

Height - mm (in)

2100 (82 13/16")

Cylinder Diameter - mm (in)

1095 (43 1/8" )

Cylinder Depth - mm (in)

775 (30 1/2")

Cylinder Volume - liter (cu.ft)

730 (25.8)

Door Opening Size - mm (in)

622 (24 1/2")

Door Bottom to Floor - mm (in)

710 (28")

Wash Speed - rpm

10-50

Distribution Speed - rpm

100

Extract Speed - rpm

250-750

Extract G-Force - rpm

34-344

Water Inlet Conn. - mm (in)

4 x 25 (1")

Steam Inlet Conn. - mm (in)

19 (3/4")

Drain Connection Size - mm (in)

2 x 76 (3")

Motor Size - kw (HP)

11.5 (15)

Voltage/Hz/Phase Non-heat

200-240/50-60/3

Circuit Breaker-FLA

40-25

Voltage/Hz/Phase* Elect. heat

N/A

Circuit Breaker-FLA



Voltage/Hz/Phase* Non-heat

380-415/50-60/3

Circuit Breaker-FLA

25-20

Voltage/Hz/Phase Elect. heat

N/A

Circuit Breaker-FLA



Voltage/Hz/Phase*

440-480/50-60/3

Circuit Breaker-FLA

25-20

Height

2300 (90 11/16")

Shipping Dimensions Width

1450 (57 1/8")

Approx. - mm (in) Depth

1720 (67 7/8")

Net Weight - kg (lb)

2100 (4630)

Shipping Weight - kg (lb)

2319 (5113)

Agency Approval

CE, cETLus



Note:

This is a standard model, if you want additional features for this model; you can call us or send us an email for a quote.

Online charges for shipping are the approximate charges not the final shipping charge
