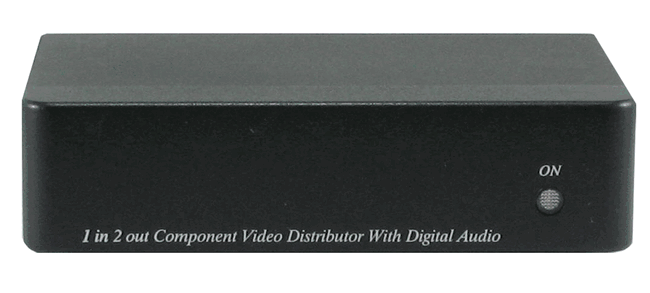

The ANI-1X2COMPDA is a 1 input to 2 output Component Video Distribution Amplifier with Digital Coaxial/Optical Audio.They are used to distribute video and Audio signals to multiple destinations, These products provide multiple outputs that are identical to the source signal. There are useful for distributing signals from VCRs, Camcorders, Video Game Consoles, DVDs, Satellite Receivers, CATV Set Top Boxes, etc. The ANI-1X2COMPDA can also be cascaded.

DESCRIPTION

The ANI-1X2COMPDA is a 1 input to 2 output Component Video Distribution Amplifier with Digital Coaxial/Optical Audio.They are used to distribute video and Audio signals to multiple destinations, These products provide multiple outputs that are identical to the source signal. There are useful for distributing signals from VCRs, Camcorders, Video Game Consoles, DVDs, Satellite Receivers, CATV Set Top Boxes, etc. The ANI-1X2COMPDA can also be cascaded.

FEATURES

Input:

1x Component Video with Digital Coaxial/Optical Audio

Output:

2x Component Video with Digital Coaxial/Optical Audio

High resolution Support HDTV 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Lighted Power Indicator

Video Bandwidth >400 Mhz

Accepts NTSC and PAL

Regulatory Approvals CE, FCC, RoHS(2002/95/EC)

SPECIFICATIONS

Type of Amplifier: 1x2 Component Video Distribution Amplifier with Digital Coaxial/Optical Audio

Input:

Video x 1: Component (RCA) (YPbPr/YCbCr/RGB) Video 75 0hms

Audio x 1: Digital Coaxial/Optical Audio (RCA and Toslink)

Output:

Video x 2: Component Video (RCA) (YPbPr/YCbCr/RGB)

Audio x 2: Digital Coaxial/Optical Audio (RCA and Toslink)

Video Bandwidth: 400MHz

Enclosure Type: Metal case

Power Consumed: 420mA Maximum

Power Source: DC 12 Volts, @500mA

Size(L,W,H): 12 in x 6.4 in x 1.55 in

WHAT'S INCLUDED

ANI-1X2COMPDA Distribution Amplifier

Users Guide

AC/DC Adapter: 12VDC, 500mA
