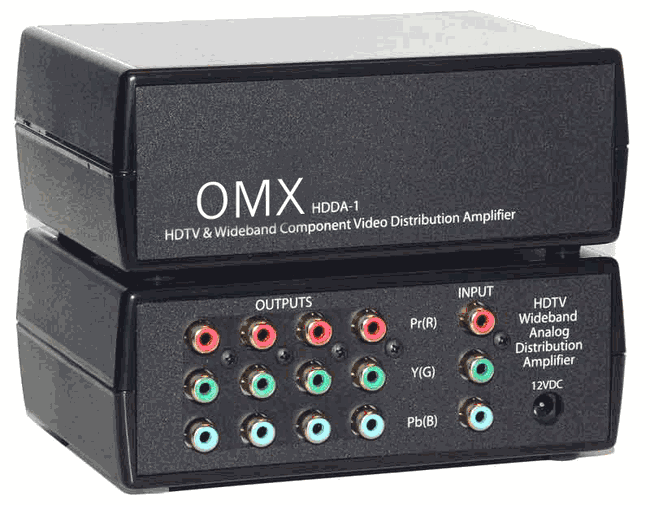

The HDDA-1 is a 1x4 Component DA which carries PrŽ, Y(G), Pb(B) on color coded RCA's. This wideband analog Distribution Amplifier is capable of buffering and splitting any nominal 1 to 2 Volt (peak to peak) signal that terminates into 75 Ohms. Perfect for outputting to multiple HDTV displays from your DVD Player or Digital Receiver.

The HDDA-1 is a 1x4 Component DA which carries PrŽ, Y(G), Pb(B) on color coded RCA's. This wideband analog Distribution Amplifier is capable of buffering and splitting any nominal 1 to 2 Volt (peak to peak) signal that terminates into 75 Ohms. Perfect for outputting to multiple HDTV displays from your DVD Player or Digital Receiver.

SPECIFICATIONS

Input: 3 Gold Plated RCA, 75 Ohm Terminated & Color Coded. -Nominal Signal: 1Vp-p, Maximum: 4 Vp-p

Output: 12 Gold Plated RCA, 75 Ohm & Color Coded. -Noise > 60dB Below 1Vp-p.

Frequency response DC-220Mhz +/-.3dB

Power: 12VDC (18VDC Max) @150ma Max. Wall Transformer Supplied.

Dimensions: 4" Wide x 6" Long x 2" High

Operating Temperature: 0 to 50 Degrees Celcius
