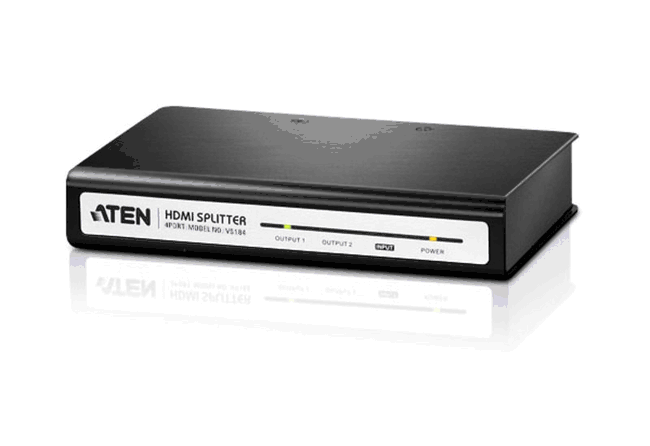

The VS184 HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
The VS184 HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
The VS184 HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
FEATURES
Connects one HDMI A/V source to four HDMI displays at the same time
Supports high-resolution video - HDTV resolution of 480p, 720p, 1080i and 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200), WUXGA (1920x1200)
Cascade distance: Source to Device -1.8m, Device to Device-15m,Device to Display-20m
Supports 12-bit Deep Color for HDMI formats
Cascadable to 3 levels - provides up to 64 HDMI signals.
Long distance transmission - 20 m (24 AWG HDMI standard cable) and 15 m (28AWG HDMI standard cable)
DDC compatible
HDMI 1.3b compliant
HDCP 1.1 compliant
Signaling rates up to 2.25Gbits in support of 1080p display
All-metal casing
LED indication of display devices
Plug-and-play - no software installation required
Easy and affordable way to take your home theater system to the next level, or upgrade presentations, training, and video broadcasts in a corporate, educational, or commercial setting.
SPECIFICATIONS
Power
Voltage 5.3 VDC
Amps 2.4A
LEDs
Power On 1 x Orange
Selected 2 x Green
Input 1 x Green
Connectors (Input) 1 x HDMI v1.3b
Connectors (Output) 2 x HDMI v1.3b
Video connections
Input 1 x HDMI (v 1.3b)
Output 2 x HDMI (v 1.3b)
Power Input Rating
Per AC Power Inlet, 50/60Hz 110V-240V
Power Adaptor Part #
for North America 0AD8-0605-24EG
for Continental Europe 0AD6-1605-241G
for UK 0AD4-3605-241G
Physical Properties
Unit Weight 0.66 lbs
Housing Metal
Case Weight 27.5 lbs
Unit Weight with package 1.3 lbs
Case Dimension 19.7 x 13 x 13.4 in
Case Qty 20
Unit Dimension 5 x 3.2 x 1 in
Unit Package Dimensions 9.375 x 6.31 x 2.63 in
The specification and pictures are subject to change without notice.
