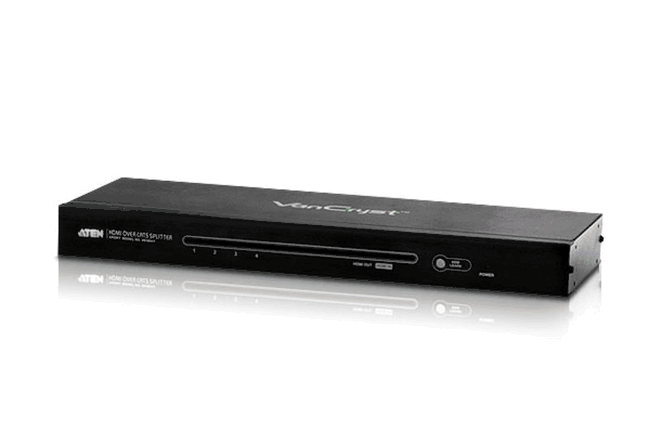

The ATEN VS1804T HDMI Over Cat 5 Splitter is the quickest and most efficient way to move HDMI multimedia content and HDCP information from input source to 4 displays. A one-to-many, point-to-multipoint system for transmission of high definition video and audio, the VS1804T transmits rich multimedia content in real time from HDMI source devices to HDMI display devices over Cat 5e cables. The VS1804T can support multi-displays when combined in an installation with ATEN's HDMI extender
The ATEN VS1804T HDMI Over Cat 5 Splitter is the quickest and most efficient way to move HDMI multimedia content and HDCP information from input source to 4 displays. A one-to-many, point-to-multipoint system for transmission of high definition video and audio, the VS1804T transmits rich multimedia content in real time from HDMI source devices to HDMI display devices over Cat 5e cables. The VS1804T can support multi-displays when combined in an installation with ATEN's HDMI extender*.
The VS1804T provides the flexibility you need for a customized digital signage or HDMI display installation, allowing you to set up your display device 60 m (200 ft) from the HDMI source devices. The VS1804T solution is ideal for any installation that requires HDMI content to be delivered to multiple destinations, such as: • In-store or tradeshow digital signage • Broadcasting information to public locations (news, airline and train schedule and arrival/departure information) • Sporting events • Theater and lecture overview rooms • Classroom and company training facilities Note*: Compatible receiving device is VE800R
FEATURES
One HDMI input to 4 HDMI outputs via Cat 5e cables
Extends displays up to 60 m
Supports HDMI (3D, Deep color)
Offers local HDMI output
HDCP compatible
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
Cascadable to three levels
Supports superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
EDID mode selection
Rack-mountable
SPECIFICATIONS
Connectors HDMI In 1 x HDMI Type A Female (Black)
HDMI Out Local 1 x HDMI Type A Female (Black)
Line Out
(Cat 5) TMDS 4 x RJ-45 Female
DDC 4 x RJ-45 Female
RS-232 1 x DB-9 Female (Black)
Power 1 x DC Jack
Switches EDID Mode 1 x 8-Position Switch
EDID Learn Mode 1 x Pushbutton
LEDs Power 1 (Green)
HDMI In 1 (Green)
HDMI Out 1 (Green)
EDID Learn 1 (Green / Red)
Line Out 4 (Green)
Video 1080p @ 40 m; 1080i @ 60 m
Power Consumption DC5.3V, 8W
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical
Properties Housing Metal
Weight 2.10 kg
Dimensions
( L x W x H ) 43.24 x 15.41 x 4.40 cm
Package Contents
1x VS1804T 4-Port HD Video/Audio Over Cat 5 Splitter
