• EXCLUSIVE! We carry the World Wide version that works in any country!

• Works with PAL, NTSC, Secam TVs.

• Works on 110-240 volts 50-60 hertz. Our model has a voltage selector switch to set the voltage. It is not modified in any way. It comes like this from the Yamaha Factory!

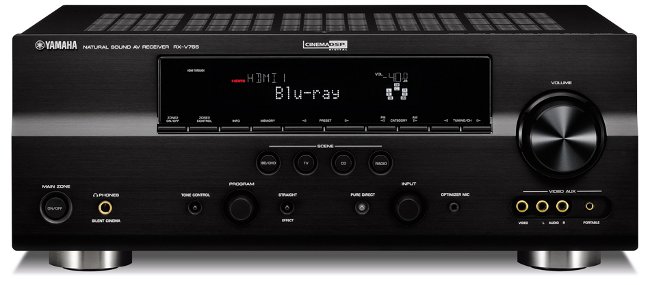

Experience the full potential of HD audio and video. Featuring HD audio decoding with high quality discrete amplification circuitry, HDMI (4 in/ 1 out), 1080p video upscaling, Pure Direct, YPAO and multi-zone operation

• EXCLUSIVE! We carry the World Wide version that works in any country!

• Works with PAL, NTSC, Secam TVs.

• Works on 110-240 volts 50-60 hertz. Our model has a voltage selector switch to set the voltage. It is not modified in any way. It comes like this from the Yamaha Factory!

PAL NTSC A/V RECEIVER FOR 110-240 VOLTSBluetooth

The Bluetooth® logo indicates that the product is equipped to use the optional YBA-10 Bluetooth® Wireless Audio Receiver that lets you connect the dock to the receiver and supports A2DP audio streaming. With the optional YBA-10 Bluetooth dock, you can enjoy music wirelessly from Bluetooth enabled mobile phones, portable devices, or personal computers.

Made for iPod (Docking Station)

The Made for iPod logo indicates that the product is equipped to use an optional Yamaha Universal iPod Dock that lets you connect your iPod to this product. With the optional dock you can listen to your music and operate the iPod via the product’s remote control while at the same time charging the battery on your iPod. Depending on your product’s specifications, some will allow you to use the On-Screen Display feature on your video monitor to navigate your music. Some products can even allow you to view your photos and movies from your iPod on your video monitor

Dolby TRUE HD

Dolby® TrueHD is Dolby’s next-generation lossless technology developed for high-definition disc-based media. Dolby TrueHD delivers tantalizing sound that is bit-for-bit identical to the studio master, unlocking the true high-definition entertainment experience on next-generation discs. When coupled with high-definition video, Dolby TrueHD offers an unprecedented home theater experience that lets you enjoy sound as stunning as the high-definition picture.

Dolby Digital Plus

Dolby Digital Plus: Dolby® Digital Plus is the next-generation audio technology for all high-definition programming and media. It combines the efficiency to meet future broadcast demands with the power and flexibility to realize the full audio potential of the upcoming high-definition experience. Built on Dolby Digital, the multichannel audio standard for DVD and HD broadcasts worldwide, Dolby Digital Plus was designed for the delivery formats of the future, but remains fully compatible with all current A/V receivers. With Dolby Digital Plus, you get even higher-quality audio, more channels, and greater flexibility. Amaze your ears.

Dolby Digital EX

This surround format from Dolby Digital includes an added center rear channel. The rear center channel is actually matrixed into the two rear channels, and is extracted upon playback. (Formerly called Dolby Digital Surround EX, or Dolby Digital Matrix 6.1.)

DTS HD Master Audio

DTS HD-Master Audio: DTS-HD Audio delivers sound quality that matches the clear and vivid images of high-definition video. Blu-ray and HD-DVD discs deliver five times the video resolution of standard DVD and produce images with stunning realism. But that's only half of the story. You need incredible sound to complete the high definition experience and DTS-HD Audio provides the highest quality multi-channel sound possible. Movies come alive with sound as lifelike as the picture, and music becomes as real as a live performance.

DTS NEO: 6 (New)

In this format, the back surround channel is matrix encoded into the left and right surround channels. For playback, the three channels are separately decoded.

XM - XM Ready

A product with this feature indicates that the item is XM SATELLiTE RADiO (XM Ready), allowing you to hear over 150 digital channels of music, news, sports, talk and entertainment from America's number one Satellite Radio service. With the addition of the optional digital antenna XM Mini-Tuner Home Dock and the XM Mini-Tuner accessories sold separately, just subscribe to XM SATELLiTE RADiO and hear radio as it was meant to be!

XM HD Surround Sound

XM and Neural Audio Corporation announce XM HD Surround, which provides content with six discrete channels of digital full fidelity audio powered by Neural Audio technology. Marking the first time that a radio company has broadcast in 5.1 Surround Sound twenty-four hours a day. Beginning in April 2006, XM will broadcast the Fine Tuning® (XM Channel 76) and the classical pops music channel XM Pops (XM Channel 113) in XM HD Surround. XM will also broadcast a variety of special shows and live music performances at the XM studios in XM HD Surround.

Neural Surround

Neural Surround™, a proprietary audio format that embeds the rich envelopment and discrete image detail of surround sound and is 100% compatible with stereo content. Chosen by XM Satellite Radio as the format for their 24/7 XM HD Surround programming

Sirius-Ready

A Sirius-Ready audio system lets you access your favorite SIRIUS Satellite Radio entertainment, including 100% commercial-free music, plus sports, uncensored talk, comedy, exclusive entertainment, world-class news and more, directly through your audio system with the use of an optional SIRIUS ConnectT Home Tuner kit. This product has a simple connector that allows you to plug the SIRIUS ConnectT kit and use the controls of this system to access all the content you want. Subscription and SIRIUS ConnectT Home Tuner (SC-H1) are required and sold separately.

HDMI

HDMI (High-Definition Multimedia Interface) is the first and only industry-supported, uncompressed, all-digital audio/video interface. With the ability to deliver crystal-clear, all-digital audio and video via a single cable, HDMI dramatically simplifies cabling and helps provide consumers with the highest-quality home theater experience. HDMI can provide an interface between any audio/video source, such as a set-top box, DVD player, or A/V receiver and an audio and/or video monitor, such as a digital television (DTV), over a single cable.

Depending on the model of product, HDMI can support standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable . It can transmit all ATSC HDTV standards and supports 8-channel, 192kHz, uncompressed digital audio and all currently-available compressed formats (such as Dolby Digital and DTS), newer HDMI devices can support HDMI 1.3 technology which adds additional support for new lossless digital audio formats Dolby® TrueHD and DTS-HD Master Audio™.

8 Ch Ext Input

8 additional input jacks for discrete multi-channel input. Front (Left, Center, Right), Rear (Surround Left & Right, Surround Back Left & Right) and Subwoofer

CINEMA DSP Digital

Conventional multichannel audio reproduction systems base their sound on Dolby Digital and DTS decoding, using matrix and steering technologies to create surround sound effects. Yamaha CINEMA DSP is much more advanced, actually creating richly realized independent sound fields that envelop you in an unmatched surround sound experience. With dialogue, music and effects from ideally located in these separate sound fields, you will hear sound with accurate placement, smooth movement, exceptional clarity and richness, and startlingly realistic presence. It will seem as if the walls of your room have disappeared and you are in the middle of your own immense theater! The decoding circuitry performs Dolby Pro Logic IIx, Dolby Digital, Dolby Digital EX, DTS Digital Surround, DTS-ES (DTS-ES Matrix 6.1 and DTS-ES Discrete 6.1), DTS Neo:6 and DTS 96/24 decoding with extreme accuracy, as well as all digital sound field processing.

SILENT CINEMA and Virtual CINEMA DSP

SILENT CINEMA makes it possible to hear large-scale surround sound through ordinary headphones! This is a variation of CINEMA DSP technology that Yamaha developed to let you listen in private to movies and other multi-channel sources for hours without listening fatigue. Virtual CINEMA DSP lets you enjoy the effects of CINEMA DSP surround sound without using surround speakers (handy for use in custom installations where some rooms don't have surround speakers). It can be used with the front / center / presence speakers or even with just the two front left and right speakers.

Compressed Music Enhancer

Yamaha employs sophisticated digital signal processing with exclusive algorithms to enable playback that improves the performance of compressed music formats, including MP3 and WMA. With the Compressed Music Enhancer, highs and especially lows are richer and smoother, bringing music back to life to be as close to the original as possible.

SCENE – A NEW LEVEL OF OPERATING EASE

Four SCENE buttons make operating the receiver easier than ever. They are initially set to default settings for DVD Viewing, Disc Listening, TV Viewing and Radio Listening. Pressing a SCENE button automatically launches a number of operations that initiate play of the source controlled by that button. Other SCENE settings are also available, such as iPod Listening, XM Listening, TV Sports Viewing and Action Game Playing. Browsing and selecting the settings is quickly accomplished by rotating the Input knob and watching the on-screen display. The settings can be selected for one-time use, or they can replace the original default settings. The SCENE names can be changed also.

YPAO Automatic System Calibration

Yamaha’s YPAO system uses a small microphone and sophisticated equalization to automatically set the best sound for any room, no matter where the speakers are. First it checks the speaker connections and phase of each speaker. Then it sends out tones which are captured by the microphone to analyze the room acoustics and sets a variety of parameters, such as the speaker size, the distance of the speakers and even the sound pressure level, etc. Until it achieves the best sound conditions for your room and you don't have to do anything!

Digital ToP-ART

Digital ToP-ART (Total Purity Audio Reproduction Technology) is the name Yamaha has given to a design philosophy whose goal is to maximize digital quality while minimizing analog circuitry. The culmination of Yamaha’s long experience in digital engineering and design, it brings together several key elements to create the best-sounding, A/V components available on the market.

MAIN FEATURES

Advanced Features

New SCENE buttons (BD/DVD, TV, CD and Radio) - quick and simple to use

YPAO sound optimization for automatic speaker setup

XM ready with XM HD Surround powered by Neural Surround

SIRIUS Satellite Radio ready

iPod compatibility via optional YDS-11 Universal Dock

Bluetooth (A2DP) compatibility with optional Yamaha Bluetooth® Wireless Audio Receiver YBA-10

On-screen display

Front panel mini jack for connecting portable audio player

Dialogue Lift

iPod song titles displayed in English and Western European languages on the front panel and on-screen display

HDMI CEC functionality

Initial Volume Setting and Maximum Volume Setting

Preset remote unit

High Picture Quality

Analog video upscaling to full HD 1080p

1080p-compatible HDMI (4 in/1 out)

Supports Deep Color (30/36 bit), x.v.Color, 120Hz/24Hz Refresh Rates and Auto Lip-Sync compensation

High Sound Quality

7-channel 665W powerful surround sound (95W x 7)

Decoders for HD audio formats: Dolby TrueHD and DTS-HD Master Audio; Dolby Digital Plus and DTS-HD High Resolution Audio

Discrete amp configuration

Digital ToP-ART and High Current Amplification

Pure Direct

Burr-Brown 192 kHz/24-bit DACs for all channels

Intelligent Assignable amplifiers for bi-amp or Surround Back <-> Front Presence or Zone 2 connection

Surround Realism

CINEMA DSP 3D (17 DSP programs) with Adaptive DSP Level

Adaptive DRC (Dynamic Range Control)

Compressed Music Enhancer

SILENT CINEMA and Virtual CINEMA DSP

Audio Delay for adjusting Lip-Sync (0-240 ms)

Versatile Zone Control

Zone 2 on/off and control on front panel

Remote input/output

Programmable +12V trigger output

SPECIFICATIONS

Channels 7

RMS Output Power (20Hz - 20kHz) 95W x 7

RMS Output Power (1kHz)

Total Power (20Hz - 20kHz) 665W

Dolby TrueHD •

Dolby Digital EX/ Dolby Pro Logic IIx •

DTS-HD Master Audio •

DTS-ES Discrete 6.1 •

DTS 96/24 / DTS Neo:6 •

Pure Direct •

HD Radio Tuner

iPod Compatibility • (With Optional YDS-11)

Bluetooth Compatibility • (With Optional YBA-10)

Compressed Music Enhancer •

Neural Surround •

XM HD Surround •

SRS (Circle Surround II)

THX Processing

Sirius Satellite Radio Ready •

XM Satellite Radio Ready •

HDMI (In/Out) (4 / 1)

i.Link (IEEE 1394)

Component Video (In/Out) (2 / 1)

A/V Inputs (S-Video) 4 (Composite)

Digital Inputs/Outputs [O: Optical,

C: Coaxial] (O: 2, C: 2)

Front A/V with Digital Input • (A/V Only)

Front Mini Input for Portables •

Front USB Input For Flash Memory Drives

LAN Terminal RJ-45 Network Connection

D/A Conversion 192 kHz / 24 bit

Surround Programs 17

Night Listening Enhancer

DCDi Processing

Time Base Corrector •

HDMI Pass-through •

HDMI Up Conversion • (with upscaling up to 1080p)

Component Video Up Conversion

S-Video Up Conversion

Dialogue Lift •

YPAO (w/Optimizer Microphone) •

On-Screen Display •

Assignable Power Amp •

Zone Speaker Terminals •

Zone 2 Output • (Audio Only)

Zone 3 Output

Zone 4 Output

Zone Power Switching • Main/ Zone2 (Front Panel)

Zone Remote Control

RS-232C Interface

+12V Trigger Output •

IR Ports •

Receiver Manager Software

Speaker A, B or A + B

Selectable Subwoofer Crossover •

Multi-Channel Decoder Inputs 8-Channel

Pre-Out All Channels •

Learning Remote Capability Preset

Macro Command Capability

Product Dimensions (W x H x D) 17-1/8” x 6-3/4” x 14-3/8”

Product Weight (lbs.) 24.3

Shipping Dimensions (W X H X D) 21" x 10-5/8" x 18-1/8"

Shipping Weight (LBS) 29
