• EXCLUSIVE! We carry the World Wide version that works in any country!

• Works with PAL, NTSC, Secam TVs.

• Works on 110-240 volts 50-60 hertz. Our model has a voltage selector switch to set the voltage. It is not modified in any way. It comes like this from the Yamaha Factory!

Enjoy all your HD audio and video sources. Featuring HD Audio decoding, HDMI (4 in/1 out), 1080p video upscaling, YPAO and New SCENE functionality. Features 7-channel 105W/ch (max); 7-channel 630W (90W x 7, RMS), HD Audio format support, 1080p-compatible HDMI (4 in/1 out), Analogue video upscaling to full HD 1080p, New SCENE buttons - quick and simple to use, CINEMA DSP with Adaptive DSP Level and iPod / Bluetooth® compatibility

• EXCLUSIVE! We carry the World Wide version that works in any country!

• Works with PAL, NTSC, Secam TVs.

• Works on 110-240 volts 50-60 hertz. Our model has a voltage selector switch to set the voltage. It is not modified in any way. It comes like this from the Yamaha Factory!

Dolby TRUE HD

Dolby TrueHD is an advanced lossless audio technology developed for high-definition disc-based media including Blu-ray Disc. Selected as an optional audio standard for Blu-ray Disc, this technology delivers sound that is bit-for-bit identical to the studio master, offering a high-definition home theater experience. Supporting bitrates up to 18.0 Mbps, Dolby TrueHD can carry up to 8 discrete channels of 24-bit/96 kHz audio simultaneously. Dolby TrueHD also remains fully compatible with the existing multichannel audio systems and retains the metadata capability of Dolby Digital, allowing dialog normalization and dynamic range control. Dolby, Pro Logic, and the double-D symbol are registered trademarks of Dolby Laboratories.



DTS HD Master Audio

DTS-HD Master Audio is an advanced lossless audio technology developed for high-definition disc-based media including Blu-ray Disc. Selected as an optional audio standard for Blu-ray Disc, this technology delivers sound that is bit-for-bit identical to the studio master, offering a high-definition home theater experience. Supporting bitrates up to 24.5 Mbps for Blu-ray Disc, DTS-HD Master Audio can carry up to 7.1 discrete channels of 24-bit/96 kHz audio simultaneously. Supported by HDMI version 1.3 and designed for the optical disc players and AV receivers/amplifiers of the future, DTS-HD Master Audio also remains fully compatible with the existing multichannel audio systems that incorporate DTS Digital Surround. DTS is a registered trademark and the DTS logos, Symbols, DTS-HD and DTS-HD Master Audio are trademark of DTS, Inc.



HDMI

HDMI (High-Definition Multimedia Interface) is the first industrysupported, uncompressed, all-digital audio/video interface. Providing an interface between any source (such as a set-top box or AV receiver) and an audio/video monitor (such as a digital television), HDMI supports standard, enhanced or high-definition video as well as multichannel digital audio using a single cable. HDMI transmits all ATSC HDTV standards and supports 8-channel digital audio, with bandwidth to spare to accommodate future enhancements and requirements. When used in combination with HDCP (High-bandwidth Digital Content Protection), HDMI provides a secure audio/video interface that meets the security requirements of content providers and system operators. For further information on HDMI, visit the HDMI website at “http://www.hdmi.org/". HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.



SCENE - A NEW LEVEL OF OPERATING EASE

With most AV components, watching or listening to what you want requires a number of steps. You have to turn on the AV component, turn on another component like a DVD player, select the source, select the surround mode and then press play. But with Yamaha's SCENE feature all you need to do is press one button. Both components turn on, the correct DSP setting is made, and play begins. This SCENE function allows you to change input sources and sound field programmes with one button. Four SCENE buttons are available for different usages, such as playing movies or music.



CINEMA DSP Digital

Conventional multichannel audio reproduction systems base their sound on Dolby Digital and DTS decoding, using matrix and steering technologies to create surround sound effects. Yamaha CINEMA DSP is much more advanced, actually creating richly realized independent sound fields that envelop you in an unmatched surround sound experience. With dialogue, music and effects from ideally located in these separate sound fields, you will hear sound with accurate placement, smooth movement, exceptional clarity and richness, and startlingly realistic presence. It will seem as if the walls of your room have disappeared and you are in the middle of your own immense theater! The decoding circuitry performs Dolby Pro Logic IIx, Dolby Digital, Dolby Digital EX, DTS Digital Surround, DTS-ES (DTS-ES Matrix 6.1 and DTS-ES Discrete 6.1), DTS Neo:6 and DTS 96/24 decoding with extreme accuracy, as well as all digital sound field processing.



SILENT CINEMA and Virtual CINEMA DSP

SILENT CINEMA makes it possible to hear large-scale surround sound through ordinary headphones! This is a variation of CINEMA DSP technology that Yamaha developed to let you listen in private to movies and other multi-channel sources for hours without listening fatigue. Virtual CINEMA DSP lets you enjoy the effects of CINEMA DSP surround sound without using surround speakers (handy for use in custom installations where some rooms don't have surround speakers). It can be used with the front / center / presence speakers or even with just the two front left and right speakers. SILENT CINEMA is a trademark of Yamaha Corporation.



Compressed Music Enhancer

Yamaha employs sophisticated digital signal processing with exclusive algorithms to enable playback that improves the performance of compressed music formats, including MP3 and WMA. With the Compressed Music Enhancer, highs and especially lows are richer and smoother, bringing music back to life to be as close to the original as possible.



YPAO Automatic System Calibration

Yamaha's YPAO system uses a small microphone and sophisticated equalization to automatically set the best sound for any room, no matter where the speakers are. First it checks the speaker connections and phase of each speaker. Then it sends out tones which are captured by the microphone to analyze the room acoustics and sets a variety of parameters, such as the speaker size, the distance of the speakers and even the sound pressure level, etc. Until it achieves the best sound conditions for your room and you don't have to do anything!



SPECIFICATIONS

Channels 7.1-channel

RMS Power (8 ohms, 20Hz-20kHz) [THD]: 90W x 7 [0.9%] (1kHz)

Max Output Power for Europe (4 ohms, 1 kHz, 0.7% THD) 7x 105 W/ch

Advanced Features

iPod Compatibility via Yamaha Universal Dock Yes

Bluetooth Compatibility via Bluetooth® Wireless

Audio Receiver Yes

Front Panel Mini Jack Input Yes

SCENE Yes

FM/AM Tuner Yes

YPAO Sound Optimization Yes

Compressed Music Enhancer Yes

Adaptive DRC (Dynamic Range Control) Yes

Initial Volume and Maximum Volume Setting Yes

Audio Delay for Adjusting Lip-Sync Yes (0-240 ms)

On-Screen Display Yes

Remote Control Unit Preset

High Sound Quality

192kHz/24-Bit DACs for All Channels Yes (Burr-Brown)

Dolby TrueHD Yes

Dolby Digital Plus Yes

DTS-HD Master Audio Yes

Dolby Digital EX Yes

DTS-ES Discrete 6.1, DTS 96/24 Yes

Pure Direct Direct Mode

Bi-Amp Assignability Yes

High Picture Quality

1080p-Compatible HDMI Yes

Deep Color (30/36 Bit) Yes

x.v.Color Yes

100/120Hz and 1080p/24Hz Refresh Rates Yes

Auto Lip-Sync Compensation Yes

Analog to HDMI Upscaling Yes

Analog to HDMI Deinterlacing (480i to 480p) Yes

Full Analog Video Upconversion to HDMI Yes (up to 720p analog input)

Surround Realism

DSP Program 17

Adaptive DSP Level Yes

SILENT CINEMA / Virtual CINEMA DSP Yes

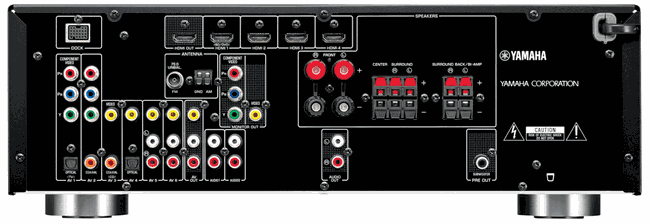

Extensive Connection / Multi-Zone Control

HDMI Inputs/Outputs 4 / 1

Audio Digital Inputs (Optical / Coaxial) 4 (2 / 2)

Component Video Inputs / Output 2 / 1

S-Video Inputs / Outputs 1 / 0

Front Panel Video Aux Terminals Mini Jack

Preout Terminals Sb/Sw

Dynamic Power/Channel (8/6/4/2 ohms) -/100/110/125 W

Total Harmonic Distortion (20 Hz-20 kHz, CD) 0.06%

Signal-to-Noise Ratio (CD, 250 mV) 100 dB

Standby Power Consumption 0.2W

Power Consumption 240 W

Dimensions (W x H x D) 435 x 151 x 364 mm

Weight 8.5 kg

Switchable between 110-120-220-240 volts 50-60 hertz
