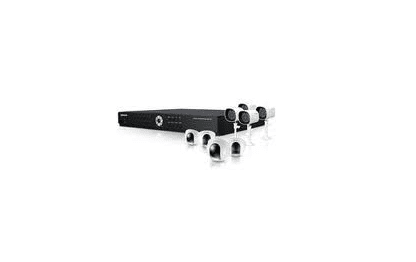

SDS-P5100N is a 16 channel Samsung Security System. It is an all-in-one home surveillance system and it comes with everything you need in the box. The DVR system comes with 10 night vision security cameras (SDC-5340BC). These Samsung Surveillance cameras are all rated IP66 (Weatherproof) and record up to 82ft range. The SDS-P5100N comes with 10 BNC Siamese cables for all 10 of your included surveillance cameras.

SDS-P5100N is a 16 channel Samsung Security System. It is an all-in-one home surveillance system and it comes with everything you need in the box. The DVR system comes with 10 night vision security cameras (SDC-5340BC). These Samsung Surveillance cameras are all rated IP66 (Weatherproof) and record up to 82ft range. The SDS-P5100N comes with 10 BNC Siamese cables for all 10 of your included surveillance cameras.

SDS-P5100N is one of the very few Samsung Security systems with a BNC cables. Because of the BNC connectors, it is also one of the most versatile Surveillance DVR systems available from Samsung’s DIY line of Home security systems. The system comes with a 2 TB Seagate HDD and it utilizes H.264 compression technology, giving you a long recording time. The DVR security system is easy to set up and easy to use. If you run into any problems, Samsung also offers you a life time technical support service. Your Samsung surveillance cameras can be set for motion detection and for email event alerts. The Surveillance DVR can also be linked with an infinite number of other Samsung Security Systems through smartviewer; a program that allows you to monitor multiple security surveillance systems at one time.

Your Surveillance DVR and Video Surveillance Cameras Includes the following features:

Smartphone and PC ready. View Anytime/Anywhere! Remote viewing on Internet Explorer or iPOLis mobile. iPOLis mobile available on your iPhone and android devices.

10 IP66 weatherproof security cameras (SDC-5340BC)

10 x 60ft of BNC Siamese cables included

Included Samsung surveillance cameras record at 600TVL.

480 total FPS (Frames per second)

2TB of storage USB 2.0 and records using H.264 compression technology.

Can set for either continuous recording or motion detection mode. DVR will send email notification when motion is detected in the motion detection mode.

Can schedule individual surveillance cameras for continuous, motion, or both by date and time. Can also set security DVR system to ignore certain areas in its field of vision. You can also set motion detection sensitivity.

One of the most flexible CCTV systems out in the market today.

10 Surveillance Cameras Included, Room for 6 more: Samsung SDC-5340BC is a bullet BNC security camera. It is weatherproof with an IP rating of IP66. It records at 600TVL and has a night vision range of maximum 82 ft. The SDC-5340BC will use a 60ft of Siamese BNC cable included in the kit. The SDC-5340BC has lenses with focus length of 3.6mm, a depth visual angle of 72˚. As you know, you have 10 Samsung surveillance cameras straight out of the box, but also 6 open channels. You can upgrade your surveillance DVR into a 16 camera security system.

For your home or business, Samsung SDS-P5100 is your security system that is both dependable and affordable. Everything you need to setup and get started is in the box. The SDS-P5100 features an 16 channel DVR with a 2TB hard drive. In the box, you will find 10 IP66 night vision weather proof cameras. Simple to set up and even easier to use, you can monitor your business or home anytime from anywhere around the world so you will always know what is going on.

Samsung also offers lifetime technical support on this product so you are always covered.

Durable and Easy Setup Cameras

All of the cameras are IP66 compliant which means that they are both waterproof and dust proof and can be placed inside or outdoors in the harshest conditions. They been tested and retested to ensure they are built to last.

all of the cameras are weatherproof and can be placed inside or outdoors in the harshest conditions. They been tested and retested to ensure they are built to last.

Best Image Available

Samsung security systems are known for their high quality recordings. All the cameras for the SDS-P5100 capture video with 600 television lines of resolution for a clear, crisp picture.

In addition, SDS-P5100 records up to 120 frames per second, making your recordings smooth. Lastly, all our cameras are also night vision capable and can detect and show objects as far as 82 feet even in complete darkness. Each camera can be set to record constantly or customized to record based on motion activation or a scheduled times.

Be Connected At All Times

You can monitor any of the cameras at anytime from anywhere in the world on your PC or smartphone. You can also change and set any functions on your DVR remotely from your PC. You can even set the SDS-P5100 to send you alerts via email when programmed events such as motion detection or loss of video signal, occurs.It's truly a system that's been developed with you, the consumer's convenience in mind.

Scan the QR code with your phone to upload iPOLis mobile, the remote viewing app developed by Samsung. You can also search for it on your app store.

Manage Multiple Systems on One Screen

You can view an infinite number of sites from one control location with your SDS-P5100.

Samsung's Smart Viewer® technology allows you to manage multiple systems, located even in multiple locations, from one geographic location. Rather than having to log in and out of each individual system, simply assign names to each camera from each system and view on your PC from anywhere in the world 24 hours a day, 7 days a week.

Large Storage Capacity and Easy to Review

The SDS-P5100 comes with a 2TB Seagate® hard drive. The hard drive is dependable and provides a large capacity to store your video. The DVR also utilizes H.264 compression technology which allows you to record even longer. Searching and reviewing your records is made easy with the option of searching by time or by event.

Samsung Quick Connect: Networking Your DVR Made Easy

Setting up remote viewing is a snap. Simply plug your internet connection to the Samsung SDS-P5100 DVR, load the Quick Connect software onto your PC and your router will be located automatically. Using your PC, follow the three easy configuration steps and then you’re ready to go.

SDR-5100

Display

Video Inputs 16 Composite video 0.5-1 Vp-p, 75 ohm

Resolution NTSC : 704 x 480 / PAL : 704 x 576

Live Frame Rate NTSC : 480fps / PAL : 400fps

Resolution NTSC : 704 x 480 / PAL : 704 x 576

Multi Screen Display 1 / 4 / 6 / 8 / 9 / 16 / Sequence / PIP

Performance

Operating System Embedded Linux

Recording Compression H.264

Record Rate NTSC : Up to 120fps@704 x 480 / PAL : Up to 100fps@704 x 576

NTSC : Up to 240fps@704 x 240 / PAL : Up to 200fps@704 x 288

NTSC : Up to 480fps@352 x 240 / PAL : Up to 400fps@352 x 288

Mode NTSC : Manual, Schedule, Event, Time Laps

PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post)

Overwrite Modes Continuous

Pre-alarm Off / 5sec

Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)

Search & Playback Search Mode Date/Time, Event, Back up, Motion

Playback Function Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only

Slow forward / backward (1/2x, 1/4x, 1/8x)

Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only

Network Transmission Speed CIF 120/100fps

Bandwidth Up to 4Mbps, 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps

Bandwidth Control Automatic

Stream H.264 (4CIF)

Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP

Monitoring SmartViewer, Webviewer, Mobile Viewer

Smart Phone Smart Phone Android, iOS (iPhone, iPad)

Protocol Support RTP, RTSP, HTTP, CGI

Transmission Speed CIF Max. 16fps (Single channel) / CIF Max. 4fps (Quad channel)

Max. Remote Users Live 1

StorageInternal HDD 2TB SATA HDD

USB (Back up) 2 USB ports

File Format (Back up) BU (DVR player), EXE (Include player)

SecurityPassword Protection 1 Admin, 10 Group, 10 User per 1group

Data Authentication Watermark

Interface

Monitors VGA 1 VGA (1024 x 768, 1280 x 1024)

HDMI 1 HDMI (720p/1080p resolution)

Audio Inputs / Output 4 line in / 1 line out

Compression G.711

Sampling Rate 8KHz

Alarm Remote Notification Notification via e-mail

Connections Ethernet 1 RJ-45 10/100Mbps Base-T

USB USB 2.0, 2 ports (Front)

Application Supoort Mouse, Remote control

Protocol Support (RS-485) Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, Vicon, GE

General

Electrical Input Voltage / Current 12V DC adaptor, 4A, 100 ~ 250V AC, 50/60Hz, 48watt

Power Consumption Max. 40W (With 1x HDD)

Environmental Operating Temperature / Humidity 0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH

Mechanical Dimensions (WxHxD) 360.0 x 44.0 x 160.0mm (14.17" x 1.73" x 6.30")

Weight (With hard disks)1,67Kg (3.68 lb)

Language English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek

SDC-5340BC

Electrical

Input Voltage 12V DC

Power Consumption 3W

VIDEO

Imaging Device 1/3" CMOS

Active Pixels 720 x 480

Scanning System Interlace

SynchronizationInternal

Frequency H : 15,734Hz / V : 59.94Hz

Horizontal Resolution 600TV lines

Min. Illumination 0Lux (IR LED)

S/N Ratio (Y Signal) 46dB

LENS

Focal Length 3.6mm

Max. Aperture Ratio 2

Angular Field of View D : 72˚

OPERATIRATIONAL

Shutter Mode Auto (Rolling shutter)

Gain Control Auto

White Balance Auto (3,200°K ~ 6,500°K)

Digital Noise Reduction Auto

Day & Night Auto

IR Distance (850nm) 25m (82ft)

ENVIR ONMENTALTAL

Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~+122°F) / 20% ~ 85%RH

MECHANICAL

Ingress Protection IP66

Dimensions (WxHxD) 70.7 x 61.0 x 192.1mm (2.78" x 2.40" x 7.56")

Weight 241g (0.53 lb)
