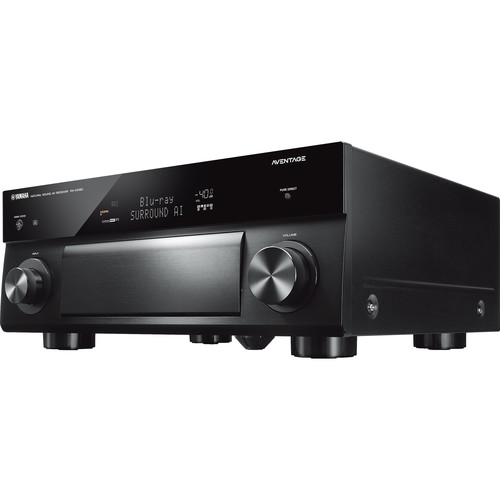

Yamaha AVENTAGE RX-A1080 7.2-Channel Network A/V Receiver 110-220 Volts

Product Highlights

Up to 110W per Channel at 8 Ohms

YPAO-RSC Multipoint Sound Calibration

HDR UHD Pass-Through / UHD Upscaling

HDR10, Dolby Vision, HLG Support

HDMI with 3D and Audio Return Channel

7 x HDMI-In / 3 x HDMI-Out

Built-In Wi-Fi and Bluetooth

Works with Amazon Alexa

Apple AirPlay Connectivity

Front-Panel USB Connectivity

Total Purity Concept

The Total Purity Concept is designed to encompass high-drive amp technology, high-purity preamplification, anti-vibration technology, and independent, pure power supplies. The receiver has fully discrete power amplifiers that help minimize distortion and adopts pure independent power supplies, allowing dedicated power supplies for the analog and digital circuitry to prevent digital noise from affecting analog circuitry. The anti-vibration heat sinks are designed to suppress vibration from transistors and sound pressure.

Anti-Resonance Technology

The Anti-Resonance Technology Wedge is a fifth foot in the center of the receiver. It is engineered to dampen vibrations from the power transformer, power transistors, and heat sinks, as well as vibrations that might be caused by the sound from the speakers.

Foundational Design

The feet of the receiver feature a high-density structure that utilizes both straight and curved ribs to enhance strength and damping performance. This is designed to enhance installation stability and disperse chassis resonance, effectively eliminating external vibration. This helps to enhance low-range response, reduce resonance peaks in the mid- and high-range, and provide dynamic sound and accurate reproduction.

Aluminum Front Panel

The AVENTAGE RX-A1080 features an aluminum front panel to help shield sensitive circuitry from external noise and electronic radiation generated by dimmer switches, fluorescent lighting, video monitors, and the like. This helps ensure optimum sonic performance in a variety of installation environments.

Symmetrical Power Amplifier

The interior of the receiver has been circuit-routed and built so that the left and right channels are physically and electrically isolated, helping to maximize channel separation and enhance the signal-to-noise ratio while also helping to achieve an open sound stage.

H-Shaped Frame

The receiver is reinforced internally with cross-members in an H-shape to help provide a rigid, stable frame. This is designed to help reduce chassis vibration to virtually zero, even during high volume output, helping to maintain audio quality.

ESS 384 kHz / 32-bit SABRE DAC (ES9007S)

Incorporating the ES9007S SABLE DAC from ESS Technology helps further enhance the signal-to-noise ratio and achieve up to 120 dB of dynamic range.

Surround:AI

This AI technology built into the DSP analyzes the scene of your content and creates a surround effect to help reproduce it with augmented realism. In real time, this AI analyzes scenes by focusing on distinct sound elements, such as dialogue, background music, ambient sounds, and sound effects, and automatically enhances the surround effect to help provide greater realism.

HDR & UHD Support Over HDMI

This receiver can pass-through UHD video at 60 frames per second, as well as the HDR10, Dolby Vision, and HLG HDR formats for enhanced contrast and colors.

Three HDMI Outputs

With three HDMI outputs, you can simultaneously connect to your display, projector, and other devices to watch two separate video sources at the same time, or broadcast the same video source across all outputs.

HDMI Zone Switching

You can transmit video or audio content to a display or home theater system in another room (Zone 2) via HDMI, allowing you to choose whether you want to enjoy the same content in the main room or different content.

Wi-Fi, Bluetooth, and AirPlay Compatibility

Built-in Wi-Fi allows you to connect the receiver to your wireless router, simplifying system connections for music streaming or enjoying networked audio from your computer or NAS. Bluetooth connectivity is also onboard, allowing you to stream audio from your compatible device into the receiver, or out from the receiver to another Bluetooth device, such as a pair of headphones.

Dolby Atmos & DTS:X

These object-based sound technologies are designed to create realistic surround sound, positioning and moving individual sounds to nearly any virtual point in your room, including overhead.

7.2-Channel Pre-Outs

Connect an external amplifier to drive your speakers for enhanced sound quality.

Control via the MusicCast App

The free MusicCast app puts control of the receiver into the palm of your hand. Access your sources and streaming services, adjust volume and sound settings, and link with other MusicCast devices for simultaneous playback throughout your home.

Voice Control with Amazon Alexa and MusicCast

With Alexa voice control integration, all you have to do is ask. Use any Alexa-enabled device, such as your Echo or Echo Dot, to control either the receiver by itself or multiple MusicCast devices throughout your home.

Built-In Streaming Services

Explore a world of music with built-in streaming services. Syncing your playlists and likes from your smart device to the receiver and discovering new music becomes even easier with the receiver.

YPAO-RSC (Reflected Sound Control) with Multipoint Measurement & Precision EQ

YPAO-RSC analyzes the room acoustics with the included microphone to tune your system for optimal sound in your room. It uses precision EQ calculation to help achieve natural room acoustics. It also uses RSC to correct early reflections for enhanced sound. Additionally, DSP Effect Normalization adjusts the room acoustics according to the reflected sounds of each CINEMA DSP program.

Zone 2 Second-Room Sound

This feature, also known as Intelligent Amp Assign, allows you to enjoy stereo sound in a second room. When Zone 2 is turned on, the two surround back channels in a 7.1-channel system will be redirected to the two speakers in Zone 2, while still providing 5.1 channels of power to the main zone. This mitigates the need to switch speaker cables.

Phono Input

Enjoy music from your vinyl collection with your turntable through the dedicated phono input.

Wireless Surround Speakers with Optional Equipment

Combine the receiver with optional MusicCast wireless speakers and enjoy the convenience of a home theater with wireless surround speakers in a 5.1-channel setup.

MusicCast for Whole-Home Music

Start with the AVENTAGE RX-A1080 receiver in your home theater and expand to other rooms over time with optional MusicCast speakers, soundbars, or hi-fi gear. Stream your music and TV audio throughout the house over your existing Wi-Fi network.

Additional Features

3D Cinema DSP with 24 programs

Dialogue level adjustment

Virtual presence speaker & virtual surround back speaker

Dialogue lift (no presence speakers required)

Virtual CINEMA FRONT

Pure Direct (with video on mode)

High-resolution music enhancer

Compressed Music Enhancer (including for Bluetooth)

YPAO Volume

Adaptive DRC (Dynamic Range Control)

Initial volume and maximum volume setting

Bi-amp capability

0 to 500 ms audio delay

UHD upscaling via HDMI

Deep Color, x.v.Color, 24 Hz refresh rate, and auto lip-sync support

HDR10, Dolby Vision, HLG, and BT.2020 support

Graphical user interface

Eight SCENE PLUS sets

Web browser control

Party Mode

Auto Power Standby

ECO Mode

eARC capability scheduled to be made available via a future firmware update

Yamaha RX-A1080 Specs

Main Unit

Output Power   110 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.06% THD, 2 channels driven

120 W per channel @ 8 Ohms, 1 kHz, 0.9% THD, 2 channels driven

165 W per channel @ 8 Ohms, 1 kHz, 10% THD, 1 channel driven (JEITA)

Dynamic Power per Channel       135 W @ 8 Ohms (front L/R)

165 W @ 6 Ohms (front L/R)

210 W @ 4 Ohms (front L/R)

280 W @ 2 Ohms (front L/R)

Channels             7.2

Object-Based Audio Support      Dolby Atmos, DTS:X

Audio Decoding                Dolby TrueHD, Dolby Digital Plus, Dolby Surround, DTS-HD Master Audio

Video

Pass-Through    4K/60p (4:4:4), HDR10, Dolby Vision, HLG, BT.2020

HDCP Version    HDCP 2.2 on all ports

Connectivity

Bluetooth            Yes (SBC / AAC)

Wi-Fi      Yes, dual-band (2.4 / 5 GHz)

AirPlay  Yes

Tuner    AM / FM

Inputs   7 x HDMI

3 x optical TOSLINK

3 x digital coaxial

2 x RCA component video

4 x RCA composite video

8 x stereo RCA audio (1 front)

1 x stereo RCA audio (phono, with ground screw)

Outputs               3 x HDMI

2 x subwoofer pre-out

1 x Zone 2 stereo RCA pre-out

1 x 7-channel RCA pre-out

1 x 1/4" / 6.35 mm headphone (front)

Other Connectors            1 x FM tuner antenna

1 x AM tuner antenna

1 x USB (front)

2 x wireless antennas

1 x Ethernet LAN

1 x 1/8" / 3.5 mm calibration mic (front)

2 x 1/8" / 3.5 mm 12 V trigger out

1 x 1/8" / 3.5 mm remote in

1 x 1/8" / 3.5 mm remote out

1 x 9-pin RS-232C

Speaker Connectors       9 x binding post pairs

HDMI CEC            Yes

Audio Return Channel (ARC)       Yes

USB Formats      MP3, WMA, WAV, MPEG-4 AAC (up to 48 kHz / 16-bit), ALAC (up to 96 kHz / 24-bit), FLAC (up to 192 kHz / 24-bit), AIFF (up to 192 kHz / 32-bit), DSD (up to 11.2 MHz)

General

Power Requirements     Not specified by manufacturer

Standby Power Consumption     IR Only: ≤0.1 W

Dimensions (W x H x D) Without Antenna: 17.125 x 7.125 x 17.25" / 43.5 x 18.1 x 43.82 cm

With Antenna: 17.125 x 10.25 x 17.25" / 43.5 x 26.03 x 43.82 cm

Weight 32.8 lb / 14.9 kg

Packaging Info

Package Weight                38.5 lb

Box Dimensions (LxWxH)             22.0 x 20.0 x 11.25"
