220-240Volt 50Hz, R410 ENVIROMENTAL FRIENDLY REFRIGERANT, 24000 BTU Heat & Cool, ENERGY CLASS A, Low Voltage Startup, Memory Function

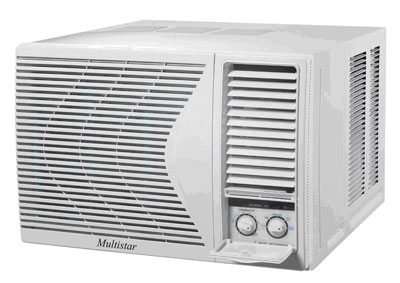

Multistar MS24HCME * 220-240Volt 50Hz * R410 ENVIROMENTAL FRIENDLY REFRIGERANT * 24000 BTU Heat & Cool * ENERGY CLASS A * Energy Efficiency Rated(EER) * Low Voltage Startup * Memory Function * Quiet Design * Rapid Cooling * Slide-Out Chassis.

Product Specification:

Unit Dimension: 16.9”H x 26.0”W x 30.5”D Unit Weight: 165Lb. Technical Specification MS24HCME

Function Cooling / Heating

Voltage 220-240V

Hertz 50

Total Capacity (BTU/h, Watts)

Cooling 23,200 BTU / 6800 Watts

Heating 21,800 BTU/ 6400 Watts

Refrigerant (kg) R410a (1.40 kg)

Power Input (W)

Cooling 2150

Heating 1870

Rated Input (W)

Cooling 2450

Heating 2160

Rated Current (A)

Cooling 10.5

Heating 9.5

EER (W)

Cooling 2.9

Heating 2.9

Airflow (m3/h)

Cooling 1000

Heating 1000

Dehumidifying Volume (i/h) 2.2

Energy Class A

Indoor Side

Fan Type Piece Cross flow fan - 1

Diameter-Length (mm) φ 224 x 109.5

Evaporator Aluminum fin-copper tube

Pipe Diameter (mm) φ 7

Row-Fin Gap 3-1.6

Output of Swing Motor (W) 4

Fuse (A) 0.02

Sound Pressure Level dB (A) (H/M/L) 55/53/51

Sound Power Level dB (A) (H/M/L ) 65/63/61

Outdoor Side

Compressor Type Rotary

L.R.A. (A) 8.8

Compressor RLA (A) 40

Overload Protector Interior Overload Protection

Throttling Method Capillary

Starting Method Capacitor

Working Temp Range (□ ) -7~45

Condenser Aluminum fin-copper tube

Pipe Diameter (mm) φ 7

Rows-Fins Gap(mm) 3-1.6

Fan Type-Piece Axial Fan-1

Fan Diameter (mm) Φ 396

Sound Pressure Level dB (A) (H/M/L) 63/51/59

Sound Power Level dB (A) (H/M/L) 73/71/69

Defrosting Method ∕

Fan Motor Speed (rpm) (H/M/L) 1000/900/800

Output of Fan Motor (W) 190

Fan Motor RLA (A) 0.8

Fan Motor Capacitor (uF) 6

Climate Type T1

Isolation I

Moisture Protection IP24

Permissible Excessive Operating Pressure for the Discharge Side (MPa) 2.7

Permissible Excessive Operating Pressure for the Suction Side (MPa) 0.6

Hi. Side Pressure 3.0MPa

Low Side Pressure 1.0MPa

Dimension & Weight

Unit Dimension (mm) 428mm H x 660mmW x 775mm D

Unit Dimension (inch) 16.9”H x 26.0”W x 30.5”D

Shipping Dimension (mm) 490mm H x 736mm W x 860mm D

Shipping Dimension: (Inch) 19.3”H x 29.0”W x 33.9”D

Unit weight kg /lb 75 kg / 165Lb.

Gross weight kg /lb 79 kg / 173.8 Lb.



This appliance is not designed for use in America –

only for countries that use 220V electrical outlets.
