Kramer's solder-free compression connectors reduce service calls by supplying strong, secure and lasting connections. Crafted to withstand 80lb (36.3kg) of force, our compression connectors provide full 360- electrical continuity even under the most punishing conditions. The radial design reduces the possibility of an impedance problem and defeats ingress/egress at the connector. Internal “O” sealing rings prevent moisture migration, while the large ferrule surface insures proper RF and digital interfaces.
One Compression Tool for All Connectors.

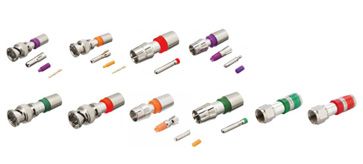

Color-Coded Connectors - See table below.
25 Connectors Per Package.
SPECIFICATIONS
Center Conductor: 0.0399 - 0.0418 inch / 1.0135 - 1.0617 mm
Dielectric: 0.180 - 0.193 inch / 4.572 - 4.9022 mm
Outer Jacket: 0.265 - 0.305 inch / 6.731 - 7.747 mm
Center Conductor: 0.0399 - 0.0418 inch / 1.0135 - 1.0617 mm
Dielectric: 0.180 - 0.193 inch / 4.572 - 4.9022 mm
Outer Jacket: 0.265 - 0.305 inch / 6.731 - 7.747 mm
Center Conductor: 0.0317 - 0.0339 inch / 0.8052 - 0.8611 mm
Dielectric: 0.144 - 0.157 inch / 3.6576 - 3.9878 mm
Outer Jacket: 0.232 - 0.273 inch / 5.8928 - 6.9342 mm
Center Conductor: 0.015 - 0.025 inch / 0.381 - 0.635 mm
Dielectric: 0.095 - 0.105 inch / 2.413 - 2.667 mm
Outer Jacket: 0.145 - 0.160 inch / 3.683 - 4.064 mm
Center Conductor: 0.0317 - 0.0339 inch / 0.8052 - 0.8611 mm
Dielectric: 0.144 - 0.157 inch / 3.6576 - 3.9878 mm
Outer Jacket: 0.232 - 0.273 inch / 5.8928 - 6.9342 mm
Center Conductor: 0.015 - 0.025 inch / 0.381 - 0.635 mm
Outer Jacket: 0.095 - 0.160 inch / 2.413 - 4.064 mm
Dielectric: 0.065 - 0.078 inch / 1.651 - 1.9812 mm
Center Conductor: 0.015 - 0.025 inch / 0.381 - 0.635 mm
Dielectric: 0.095 - 0.105 inch / 2.413 - 2.667 mm
Outer Jacket: 0.145 - 0.160 inch / 3.683 - 4.064 mm
Center Conductor: 0.0399 - 0.0418 inch / 1.0135 - 1.0617 mm
Dielectric: 0.180 - 0.193 inch / 4.572 - 4.9022 mm
Outer Jacket: 0.265 - 0.305 inch / 6.731 - 7.747 mm
Center Conductor: 0.015 - 0.025 inch / 0.381 - 0.635 mm
Dielectric: 0.065 - 0.078 inch / 1.651 - 1.9812 mm
Outer Jacket: 0.095 - 0.160 inch / 2.413 - 4.064 mm
