1/3" CMOS Sensor

50 Mb/s MPEG-2 Recording

4:2:2 Color Sampling

50p/50i, 25p

MXF File Format

Dual CF Card Slots

10x HD Zoom Lens

Multiple Bit Rates & Resolutions

Dual XLR Inputs

HDMI, Component, Composite Outputs

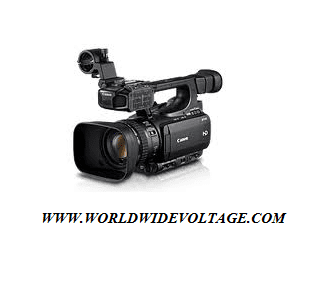

Canon's XF100 HD Professional PAL Camcorder is an amazingly compact, fully featured pro video camera that imports nearly all the features and functionality of the three-chip XF300 into a smaller, single-sensor form factor. Taking advantage of the latest HD technology – along with Canon's robust MPEG-2 4:2:2 codec – the XF100 records full HD video to affordable Compact Flash cards, making it as versatile as it is powerful.

A newly developed Genuine Canon 10x HD video lens resolves images onto a native 1920 x 1080 CMOS sensor, which are captured in industry-standard MXF file wrappers using your choice of bit rate (up to 50 Mb/s), resolution, and frame rate. Full image customization and HDMI/Component/Composite outputs are equally on par with the camera's big brother, the XF300.

But not content with simple "junior partner" status, the XF100 brings some of its own muscle to the table in the form of infrared recording and – when used in combination with another XF100 or XF105 – stereoscopic 3D capability. This fusion of exceptional image quality with portability and pinpoint control makes the XF100 the perfect low-profile tool for a range of applications, including ENG, travel documentaries, indie features, and event videography.

MPEG-2 4:2:2 50 Mb/s Codec (Canon XF Codec)

Canon's adaptation of MPEG-2 for the XF100, named the Canon XF codec, ensures the widest compatibility with existing industry infrastructure and nonlinear editing (NLE) systems. And by using an MXF file wrapper, video and audio can be wrapped in a single file along with important metadata. The XF100 supports the highest HD quality with Full HD 1920 x 1080 resolution, up to a 50 Mb/s bit rate and 4:2:2 color sampling

4:2:2 Color Sampling

4:2:2 color sampling provides twice the color resolution of HDV and other codecs that use 4:2:0 color sampling. 4:2:2 provides ultra-fine transitions in tone and color and maintains the highest quality image for use in post production processes such as chroma keying, color grading, advanced compositing, and effects

Record to Compact Flash Cards

Unlike other camcorders using proprietary memory systems, the XF100 records to cost-effective and readily available Compact Flash (CF) cards. The camcorder features two CF card slots and offers versatile recording functions including relay recording, hot swapping, file copy & backup, and pre-record.

File-based recording facilitates workflow by reducing transfer times when moving video to NLE systems. Additionally, metadata can be input at image acquisition, and imagery may be reviewed immediately after recording to ensure every shot is captured and logged correctly

Major NLE Software Compatibility

Canon's XF codec is supported by the industry's leading software manufacturers: Adobe, Apple, Avid, and Grass Valley. This ensures the widest compatibility with existing infrastructure and NLE software

MXF Wrapper

The XF100 uses Material Exchange Format (MXF) for its file structure. This is an internationally standardized container format for the exchange of video and audio material. Using the MXF format, video and audio can be wrapped into a single file along with important metadata. With MXF, the XF100 will not only benefit from the highest level of compatibility with NLE systems, but also with high-end network systems used by many networks and production studios

Genuine Canon 10x HD Lens

Canon's optical expertise is clearly seen in the XF100's genuine Canon 10x HD video lens. It delivers flexibility in image capture with a zoom range of 30.4-304mm (35mm equivalent). Power zoom is available in Constant and Variable settings in 3 modes: Fast (approx. 1.9-60 seconds), Normal (approx. 3.0-180 seconds), and Slow (approx. 4.0-285 seconds)

Canon Native 1920 x 1080 CMOS Image Sensor

Newly designed and manufactured exclusively by Canon, the XF100 incorporates a native 1/3", 1920 x 1080 CMOS image sensor, delivering superb full HD video recording with minimal noise. The high sensitivity and wide dynamic range of this sensor are what demanding users expect from Canon. Slow- and fast-motion shooting are supported for greater flexibility in creative choice. The compactness of the sensor contributes greatly to the small, super-handy size of the XF100 and its outstanding usability in the field

Multiple Bit Rates, Resolution, & Frame Rates

Multiple recording modes, resolutions, and frame rates make the XF100 camcorder creatively flexible and able to work in virtually any production environment. From the highest-quality 50 Mb/s Full HD to the HDV-compatible 25 Mb/s, users will find the camcorder capable of taking on any job

Canon DIGIC DV III Image Processor

The XF100 features Canon's powerful DIGIC DV III Image Processor, which provides enhanced shading, lifelike tonal gradations, new custom picture settings, and lower power consumption. DIGIC DV III is also the high-speed engine that powers Genuine Canon Face Detection. On-the-go videographers will appreciate the ability to track one subject in a crowd of people

Built-in 3D Assist Features

The XF100 has the ability to be paired with another XF100 or XF105 camcorder to provide true stereoscopic 3D recording. It offers several features to assist with 3D production, including OIS Lens Shift to aid in optically aligning the two camcorders. A focal length guide displays the zoom position of each camera in relation to each other and calibrates the zoom distance.

The XF100's compact size provides an alternative to large 3D rigs, allowing 3D crews to work more quickly and efficiently while providing the needed features to capture exceptional 3D imagery

Infrared Recording

The XF100 camcorder features an Infrared Mode that allows users to capture video in conditions with little to no ambient light, a situation which would make other camcorders useless. During infrared capture, the infrared cutoff filter is removed from the optical path. This, combined with a specially designed lens coating, allows infrared light to pass through to the image sensor. Additionally, the XF100 features an infrared emitter with a diffuser to shoot pleasing infrared imagery even in complete darkness

Brilliant Ergonomics

Canon designed the XF100 as an ultra-compact camcorder without compromising on features and usability. Its small size makes this camcorder ideal in situations where every inch and ounce count, such as flying to a location or going on expedition. It offers amazing image quality, yet it can easily be placed in the back of a car or carried in a backpack. This makes the XF100 the perfect camera to go anywhere, anytime, all on a moment's notice

Neutral Density Filter

For enhanced versatility, the XF100 offers a built-in gradation type neutral density (ND) filter (approximately 1/8)

SuperRange Optical Image Stabilizer

The XF100 also incorporates a newly designed SuperRange Optical Image Stabilization system (lens shift) with three modes: Standard, Dynamic, and Powered

Instant AF

When shooting high-definition video, sharp focus becomes more critical than ever. Canon's proprietary Instant AF system combines an external AF sensor with Canon's legendary autofocus system for fast and accurate focus. Together, the two sensors reduce focusing time – even in low-light, low-contrast, or high-brightness situations, they improve focusing performance for difficult subjects

Eight-Blade Iris

In contrast to a typical six-blade iris, the XF100's eight-blade iris captures extraordinarily smooth out-of-focus "bokeh" for a more attractive image effect. The additional blades also reduce diffraction of light passing through the iris, allowing for the use of smaller apertures while maintaining image quality

Digital Teleconverter

The Digital Teleconverter extends the reach of the optical zoom, and is selectable by 1.5x, 3x, and 6x. This feature is ideal when extreme telephoto shooting is needed, such as with sports and wildlife, as well as surveillance applications for law enforcement and the military

Slow Motion & Fast Motion

Slow- and fast-motion modes allow the XF100 to record a different frame rate than the playback frame rate, resulting in either a fast- or slow-motion effect during playback. Since the camera is recording real frames and modifying the playback rate, there is no quality loss, and maximum image quality is maintained

Interval Recording

With this feature, users can program the camera to record a specified number of frames at specified intervals. The technique can be used to observe natural phenomena over extended periods, making it ideal for time-lapse applications. The interval can be set at 25 levels ranging from 1 second to 10 minutes. Frame recording is also possible, allowing a specified number of frames to be recorded – ideal for projects such as clay animation

3.5" 920K-Dot LCD Monitor

A 3.5", 920,000-dot LCD monitor provides an ample, accurate area for critical focus confirmation and approximately 100% field of view. The display opens on the left side of the camera body

260K-Dot Electronic Viewfinder

The XF100 features a 0.24", 260,000-dot color EVF with approximately 100% field of view coverage for comfortable viewing and accurate judgment of composition. Brightness, contrast, color, and backlight are adjustable. The angle of the viewfinder is adjustable up and down through 68° for additional user comfort and when using the LCD display for monitoring

Focus Assist Functions

With Canon's new Edge Monitor Focus Assist system, a red and green monitor is shown at the bottom of the LCD display, and three red focus check areas are shown across the display. The green waveform shows overall focus of the image, while the red waveform shows the focus status of the focus check boxes. Through the use of this dynamic focus feedback, the user can intuitively tune focus in a scene and quickly change the zone of focus

Peaking/Magnify

Two peaking modes and a Magnify Focus Assist function are available in standby and record mode (LCD monitor and EVF), making it extremely easy for the XF100 operator to check and confirm critical focus

Exceptional Customization

Users of the XF100 have full manual control over all camera functions to adapt to both technical and artistic challenges when shooting. For maximum customization, users have access to Custom Picture Settings, Custom Functions, and Custom Display Options to tailor the camera to their creative and production needs. Any combination of these items can be saved to an SD memory card for easy setup and matching of multiple XF100 and XF105 camcorders

Custom Picture Settings

You can manually set an extensive variety of image quality adjustments and store them as nine different presets in the camera. Up to 20 may be saved to an SD card. The adjustments include Gamma, Black Level, Black Gamma, Low Key Saturation, Knee, Sharpness, Noise Reduction, Skin Detail, Selective Noise Reduction, Color Matrix, White Balance, Color Correction, and Setup Level

Custom Functions

The XF100's operation can be further fine-tuned through the use of Custom Functions. This allows the camcorder to truly match your shooting style. A total of 15 unique items can be adjusted, including Shockless Gain, Shockless White Balance, AE Response, Iris Limit, Iris Ring Direction, Focus Ring Control, and Character Record. And for quick access to commonly used functions, the XF100 features 10 customizable control buttons

Custom Display

The Custom Display function lets you set 32 display items to create a custom LCD/EVF to suit your specific needs. Items that can be selected include: Zoom Position, Audio Level, Remaining Record Time, Exposure, Object Distance, Time Code, and more

Audio System

A stereo microphone is incorporated into the XF100, as are two XLR audio inputs with +48V phantom power and a 3.5mm microphone input terminal. The built-in microphone provides exceptional audio in fast-paced situations, while the XLR inputs and microphone input terminal provide connectivity to external microphones. In addition, the XLR inputs allow the use of other professional audio devices. The built-in microphone and an external microphone can be used simultaneously.

Audio is recorded in 16-bit PCM format at 48kHz for amazing quality and fidelity. And both the built-in microphone and XLR inputs have the option for automatic or full manual gain control. To prevent variations in the recorded audio level, the dial can also be locked

Connectivity

Not only does the XF100 Professional Camcorder provide the professional user with complete control over the image, it also provides complete creative freedom when it comes to inputs and outputs including:

HDMI output

Component video output

Composite video output (3.5mm terminal)

USB 2.0 high-speed terminal

Remote control terminal (compatible with LANC protocol)

Waveform Monitor

Videographers depend on this feature to confirm accurate exposure and color levels during the capture process. Typically found only on expensive external units, the Canon XF100 has a waveform monitor built right into the camera. The waveform monitor shows a detailed view of overall image brightness and RGB components

Intelligent Battery System

The XF100 is compatible with Canon's BP-925, BP-955, and BP-975 intelligent Lithium-ion batteries. These batteries communicate remaining running time (down to the minute) and send data back to the camcorder, so the user is well-informed at all times. On the outside of the battery, four LED lamps allow battery life to be viewed quickly when in the field. The camcorder is also compatible with existing Canon BP-900 series batteries, which can be inserted and removed while the supplied AC power cable is connected

Color Bars with Reference Tone

Two types of color bars can be selected: Type 1 (SMPTE compliant) or Type 2 (ARIB compliant); 1 kHz Reference Tone: -12dB, -18dB, 20dB, or OFF

Photo Capture

For applications such as storyboarding, continuity, and publicity shots, the XF100 offers the ability to capture 1920 x 1080 still images. Photos may be captured to an SD memory card during the time of recording, as well as "frame-grabbed" during playback

Bundled Canon XF Utility Software

Compatible for use on both Mac and Windows platforms, Canon's XF Utility software provides a simplified first step in the process of managing and playing back your clips. Additionally, the software can manage lists of clips in a number of display formats, as well as tag, add, and edit metadata. It also serves as an efficient means of backing up media

Image Device

1/3" CMOS Sensor 2.37 Mp (2.07 Mp effective)

Lens

10x HD Zoom 4.25-42.5mm (30.4-304mm, 35mm equivalent) f/1.8-2.8 58mm filter diameter

Horizontal Resolution

900 TV lines or more

Focusing System

TVAF plus External Phase Difference Metering Sensor Autofocus (Instant AF, Medium AF, Normal AF, Face AF, Face Only AF), Manual, Full Manual

Minimum Illumination

0.08 lux (Manual mode, 50i frame rate, 1/3 shutter speed, +33 dB gain)

Built-in Filters

Neutral Density (Auto or Off)

Minimum Focus Distance

20mm (wide macro), 60 cm (entire zoom range)

Video Recording System

Compression: MPEG-2 Long GOP Color Space: 4:2:2 (at 50 Mb/s recording) File Format: MXF

Recording Modes: 50 Mb/s (CBR) 4:2:2, 1920 x 1080 (50i/25p) 1280 x 720 (50p/25p) 35 Mb/s (VBR) 4:2:0, 1920 x 1080 (50i/25p), 1280 x 720 (50p/25p) 25 Mb/s (CBR) 4:2:0, 1440 x 1080 (50i/25p)

Audio Recording Format

2-channel PCM digital recording, 16-bit, 48 kHz

Frame Rates

50i, 50p (720p mode only), 25p

Image Stabilization

SuperRange Optical (Lens Shift) 4 modes: Standard, Powered, Dynamic, Off

LCD Monitor

3.5" Color, approx. 920,000 dots

Viewfinder

0.24" Color, approx. 260,000 dots

Microphone

Stereo electret condenser microphone

Memory Card Slot

CF Card: 2 Slots (movie files only) SD Card: Still images, Custom Picture Data, Clip Metadata, Custom Settings

Shutter Speed

Max 1/2000

White Balance

Auto, Manual, Custom (2000K - 15000K in 100K increments), Daylight, Tungsten

Gain Selection

-6.0 db, -3.0 db; 0-24.0 dB in 0.5 dB incremements; 33.0 dB

Maximum Recording Time

64 GB Compact Flash (CF) card (Greater capacity is possible when two cards are used.) 25 Mb/s: 310 minutes 35 Mb/s: 225 minutes 50 Mb/s: 160 minutes

Input and Output Connectors

Component (x1 Output) Composite: 3.5mm A/V (x1 Output) HDMI: Standard Type A (x1 Output) Mic/Line: XLR 3-pin (x2 Input) USB: Mini-B USB 2.0 Headphone: 3.5mm Mini Remote Control Terminal: LANC

Power Requirements

7.4V DC (Battery Pack) 8.4V DC (DC In)

Power Consumption

Recording at 50 Mb/s with AF on, viewfinder/LCD screen normal brightness: 6.1W with viewfinder, 6.2W with LCD screen

Operating Temperature

32-104°F (0-40°C), 85% relative humidity

Dimensions (WxHxD)

4.8 x 5.8 x 9.8" (12.1 x 14.8 x 25 cm)

Weight

2.2 lb (1 kg) not including battery, memory card, lens hood, mic holder

This is a "PAL" product and CANNOT be used in the USA. It is designed for use with video products built to PAL TV standards.
