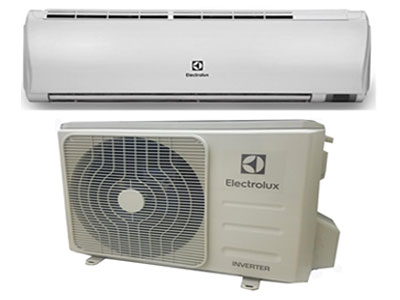

Split Air Conditioner 220-240 Volt, 50 Hz Electrolux ES12K57CCH NOT FOR USA
220-240 Volt, 50 Hz, Split Air Conditioner
12000 BTU Capacity
INVERTER Heat & cool (heat pump)
R410a Refrigerant type
CE & RoHS Approved
A++/ A+ Energy Class (cool/heat)
T1 Ambient
3.2 EER BTU (Energy Efficiency Rating)
Electronic control
4 Speed setting
LED Display Indoor unit
Remote Control LED Display
Temperature Display
Inverter compressor
Auto Fan
Turbo Fan
24 Hour timer
Follow me function
High density dust filter: a delicate dust filters with higher quality
White color
Technical Specification
Voltage : 220-240V, 50Hz
Cooling Capacity (Btu/h) : 12000
Cooling Capacity (W) : 3517
Heating Capacity (Btu/h) : 13000
Heating Capacity (W) : 3810
T1 Tolerance for Capacity (MP) : 8%
Dehumidification (l/hour) : 1.0
Applicable Operating Temp : 16~30
Applicable Ambient Temp in cooling (?) : -15~50
Applicable Ambient Temp in heating (?) : -15~30
Approximately CO area (Sq. M) : 16~23
T1 EER (Btu/h)/W : 10.95
T1 EER (W/W) : 3.21
T1 EER (Mass Production Control) ( W/W) : 2.96
COP (Btu/h)/W : 12.32
COP (W/W) : 3.61
COP (Mass Production Control) (W/W) : 3.50
High Ambient (T1/T3) : T1
T1 Tolerance for EER/COP (MP) : 8%
Eco Label Energy Class Cooling/Heating : A++/A+
Declared SEER (W/W) : 7.2
Electrical
Power Watts (Cooling) : 1096
Power Watts (Heating) : 1055
Amps (Cooling) (A) : 5.2
Amps (Heating) (A) : 4.8
Maximum Input(W) : 2000
Maximum Current(A) : 8.7
Features:
Controls : Electronic
Control Panel Location : Right
Memory Function : Yes
Fan Speeds (CO/Fan/Heat) : 4/3/4
1W Standby (230+/-10%) : Yes
Auto Fan : Yes
Turbo Fan : Yes
Follow Me : Yes
Light : Yes
Sleep Mode : Yes
Low Ambient Cooling(-15°C) : Yes
24 HourTimer ON and Timer OFF : Yes
Indoor Air Volume (M³/Hr) : 520/460/270
Indoor Motor RPM : 1100/1000/700
Outdoor Air Volume (M³/Hr) : 2000
Outdoor Motor RPM (High/Low) : 810/710/520
Air Direction Control - Vertical Swing : Yes
Indoor Sound Pressure Level dB (A): 39/35/24/22
Indoor Sound Power Level dB (A) : 52
Outdoor Sound Pressure Level dB (A) : 53
Outdoor Sound Power Level dB (A) : 60
Bio Filter : Yes
Active Carbon Filter : Yes
Auto Cleaning(X-FAN) : Yes
Water-proof of Outdoor (IP24) : Yes
Gold Fin Evaporator : Blue
Safety Standard : IEC (International Electrotechnical)
Energy Label : Yes
Dimensions (in) / Specifications
Refrigeration Type : R410a
Indoor Unit Dimension : 8.30”H x 31.61”W x 11.77”D
Indoor Unit shipping Dimension : 11.61”H x 34.44”W x 14.76”D
Outdoor Unit Dimension (W/D/H)( mm) : 21.81”H x 31.49”W x 13.11”D
Outdoor Unit shipping Dimension : 24.21”H x 36.22”W x 15.35”D
Indoor Unit Weight (Kg) : 8.2
Indoor Shipping Weight (Kg) : 11.08
Outdoor Unit Weight (Kg) : 29
Outdoor Shipping Weight (Kg) : 31.8
