The refrigeration system in ice machines has to be cooled during operations because of the heat that is generated during the mechanical process

Difference between AIR COOLED & WATER COOLED

The refrigeration system in ice machines has to be cooled during operations because of the heat that is generated during the mechanical process. These are the two types: Air Cooled or Water Cooled

*Air cooled:

1 Good-Uses less water- It is cooled by a fan

2 Good-Better for environment

3 Bad-Has a tendency to heat the room where it is located more than water cooled

4 Bad-Little noisier than water cooled

5 Good-Most popular

*Water cooled:

1 Good-Quieter than air cooled

2 Good-More energy efficient

3 Good-Does not raise room temperature

4 Bad-Cost for water cooled is in some cases higher

5 Bad-A lot more water is used which some consider to be a waste

6 Bad-Water bill is higher

7 Bad-Water filtration systems have to be changed more frequently because of water usage

These are the good and the bad for both. It's simply the way in which the systems are cooled

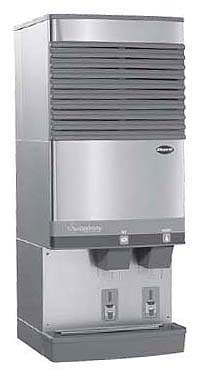

Convenient, sanitary, user-friendly dispensing

• Labor-saving, sanitary automatic load

• Lever dispensing standard

• Quick shut-off reduces the amount of wasted ice

• High-quality Chewblet compressed nugget ice is slow melting, easy to chew

• Clear chute ensures sanitary delivery and focuses ice cleanly into cups, pitchers, carafes, ice bags

SensorSAFE™ accessory offers even more sanitation and convenience

• Infrared sensing eliminates container to dispenser contact, reduces chance of cross-contamination

• Easy, one-hand filling of containers

• Attractive graphics direct users to actuation zone

Space-saving, attractive design

• 21" (534mm) width requires less space than competitive models of similar capacity

• Zero side clearance required for ventilation

• Softly-rounded European styling

• High-quality stainless steel exterior with plastic trim

• Attractive, user-friendly graphics

Environmentally-friendly Maestro icemakers

• State-of-the-art R404A icemaker automatically loads dispenser with 400 lbs (181kg) of ice each day

• Stainless steel evaporator and auger

• Energy-efficient; no costly defrost cycles or high waste water

• Quiet production; no noisy harvest cycles

• Satellite-fill™ icemakers can be located up to 20 feet (6m) from dispenser; remove heat, noise and bulk from customer area

Accessories

• SensorSAFE actuation (standard on wall mount models)

• Chilled water option (item# AFH20CHIL2550)

• Water filter kit (item# 00130229)

• Base stand (for models 25CT400A/W, C/E25CT400A/W) (item# AF50BASESTD)

• SafeCLEAN™ environmentally-responsible ice machine cleaner (item# 00132001)

• Slide-out track for Satellite-fill icemakers

(item# AFGSLIDER400A (air-cooled icemakers) and item# AFGSLIDER400W (water-cooled icemakers))

• Drain pan assembly for wall mount models

(item# AFH25WBASE)

Wall Mount Models

• Deduct 3.625" (92mm) from height shown

• Add .5" (13mm) to depth shown

• Wall mount bracket standard

• SensorSAFE standard

• No drain pan. Drain pan available – contact factory.

Connections Utilities connect through back or bottom. Back entry shown. Supplied 2" (51mm) duct and louver must be installed for undercounter Satellite-fill icemaker installations.

Required Clearances

• Models with integral icemakers – 6" (153mm) at top for ventilation, 12" (305mm) recommended for service

• Models with Satellite-fill icemakers – 12" (305mm) at top recommended for service

• See Dispenser Detail Sheet, form# 2075, for important installation information

Electrical

Standard electrical – 115V, 60Hz, 1 phase. Icemaker 11 amps, dispenser 4 amps. Cord and plug provided with each icemaker and dispenser. If local code requires hard-wiring, separate disconnects also required. Satellite-fill icemaker models require separate circuits for icemaker and dispenser.

Alternate electrical – 220V, 60Hz, 1 phase, 6.5 amps (icemaker 5 amps). 230V, 50Hz, 1 phase, 6.5 amps (icemaker 5 amps). Cord only provided with each icemaker and dispenser.Wire in accordance with all local codes.

Plug configuration – 7 ft (2.1m) cord and NEMA 5-20 hospital-grade plug provided with each dispenser. 220V/230V models, cord only.

Approximate Shipping Weight

C/E/25CT400A/W 295 lbs (134kg)

C/E/25CR400A/W 250 lbs (113kg)

C/E/25HT400A/W 310 lbs (141kg)

C/E/25HR400A/W 295 lbs (134kg)



Note: Above model is also available in 115/60 electrical configuration.
